Project no.3
University Hospital Expansion project on Lee Street. in Charlottesville, Virginia
​
Completed in: 2016.
​
Services provided by A2Z Shop Drawings Corp.:
Structural steel landings shop drawings. (All steel was installed inside of concrete stair shafts and connected to the concrete through plates that were embedded in shear walls)
2 sets of steel stairs detailing (58 flights combined)
Structural steel landings shop drawings
​
Typical Railing detailing and shop drawings
​
​

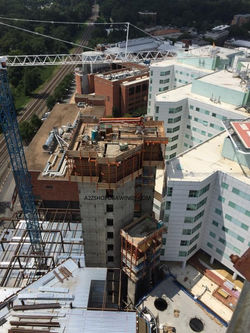

 UVH MAIN. |  west stair. |  east stair. |
|---|---|---|
 WEST STAIR ISOMETRIC |  EAST STAIR ISOMETRIC. |  WEST ISOMETRIC BOTTOM 2 FLOORS |
 EAST ISOMETRIC BOTTOM 2 FLOORS |
